SJTO

SJTO

Rated Temperature: 60℃-105℃

Rated Voltage: 300V

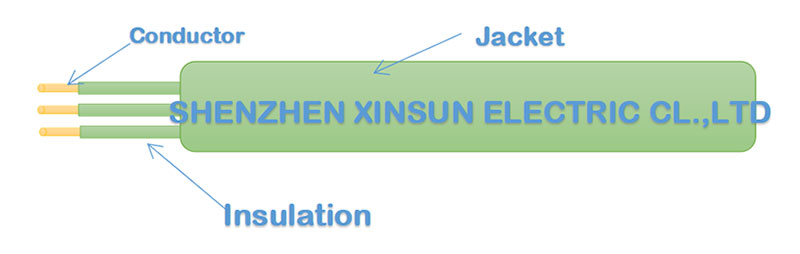

Conductor: Annealed bare copper and twisted

Insulation: PVC

Feedback

Details

导体绝缘
外被包装
芯数线号NO.条数Dia. 线径厚度直径厚度直径
218AWG410.160 0.762.80.76 7.60 100
318AWG410.160 0.762.80.76 7.80 100
418AWG410.160 0.762.80.76 8.60 100
518AWG410.160 0.762.80.76 9.60 100
216AWG260.2540.763.10.76 8.10 100
316AWG260.2540.763.10.76 8.50 100
416AWG260.2540.763.10.76 9.40 100
516AWG260.2540.763.10.76 10.50 100
214AWG410.2540.763.50.76 9.00 100
314AWG410.2540.763.50.76 9.30 100
414AWG410.2540.763.50.76 10.30 100
514AWG410.2540.763.50.76 11.80 100
212AWG650.2540.764.0 0.76 10.50 100
312AWG650.2540.764.0 0.76 11.00 100
412AWG650.2540.764.0 0.76 12.30 100
512AWG650.2540.764.0 0.76 13.50 100
210AWG1050.2541.145.7 1.5215.00 100
310AWG1050.2541.145.7 1.5215.80 100
410AWG1050.2541.145.7 1.5217.00 100
510AWG1050.2541.145.7 1.5219.00 100
